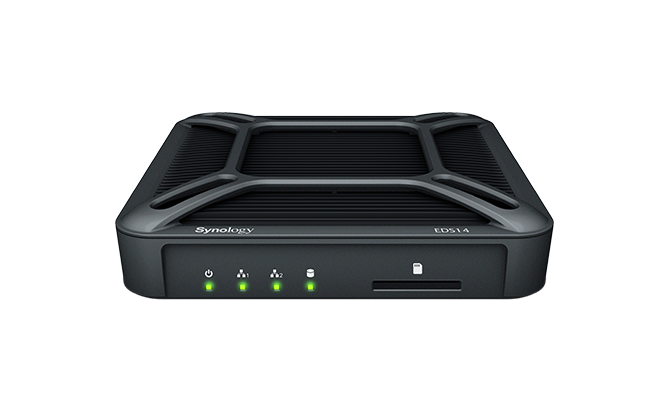

Synology EDS14



Who Offers the Best Price and Service for the Synology EDS14 NAS?




ON YOUTUBE
Getting latest videos with a keyword: EDS14

RELATED POSTS

Best EDS14 price


PERFORMANCE:

Specification:
SpecsValue
CPU-Model Marvell Armada 370 88F6707
CPU Frequency 1.2 GHz
Floating Point
Hardware Encryption Engine
System Flash 4 GB eMMC
System-memory 512 MB DDR3
USB 2.0 Port 1
USB 3.0 Port 1
SD Card Reader
External Drives
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+ (Read Only, with max. volume size 2TB)
Size (Height x Width x Depth) 31 mm x 125 mm x 125 mm
Weight 0.295 kg
RJ-45 1GbE LAN Port 2 (with Link Aggregation / Failover support)
Wireless Support (dongle)
Power Supply Unit / Adapter 24W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power-Consumption 8.66 W (Access)
7.12 W (Idle)
British Thermal Unit 29.55 BTU/hr (Access)
24.29 BTU/hr (Idle)
Dynamic DC Input 7-24V
DC Output 1A
Operating Temperature -20°C to 50°C (-5°F to 122°F)
Adapter Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC Class B
  • CE Class B
  • BSMI Class B
  • EN50155
  • EN45545
Warranty 3 Years
Notes
  • Shared folder syncing is not supported.
  • When EDS14 works in an environment over 38°C, maximum IP camera will be lowered to 2 for the protection of your device. FPS information in H.264: 2 Ch @ 720P @ 60 FPS; 2 Ch @ 1080P @ 20 FPS; 1 Ch @ 3M @ 10; FPS; 1 Ch @ 5M @ 10 FPS. FPS information in MJPEG: 1 Ch @ 720P @ 20 FPS; 1 Ch @ 1080P @ 10 FPS; 1 Ch @ 3M @ 8 FPS; 1 Ch @ 5M @ 5 FPS
  • Surveillance Station throughput is tested with Axis P1347 (H.264@1280x720@30FPS), using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera. Recording video is saved every 5 minutes with the limit of archive folder up to 1GB.
Max File System Size 16 TB
Maximum Local User Accounts 128
Maximum Local Groups 64
Maximum Shared Folder 32
Maximum Shared Folder Sync Tasks 2
Maximum Concurrent CIFS/AFP/FTP Connections 128
NFS Kerberos Authentication
Audio Station
Cloud Station*
Maximum Concurrent File Transfers 128
DHCP Server
DNS Server
Download Station
Maximum Concurrent Download Tasks 50
Glacier Backup
HiDrive Backup
iTunes Server
Media Server
DLNA Certification
Maximum Users 3
Maximum Simultaneous Editing Users 3
Photo Station
Surveillance Station
Maximum IP cam (Licenses required) 5 (including 2 Free License) (See All Supported IP Cameras)
Total FPS (H.264)* 150 FPS @ 720p (1280x720)
60 FPS @ 1080p (1920×1080)
40 FPS @ 3M (2048x1536)
30 FPS @ 5M (2591x1944)
Total FPS (MJPEG)* 90 FPS @ 720p (1280x720)
54 FPS @ 1080p (1920×1080)
36 FPS @ 3M (2048x1536)
20 FPS @ 5M (2591x1944)
Video Station
Video Transcoding Group 2 (See more)
VPN Server
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Welcome Note X 1
  • AC Power Adapter X 1
  • RJ-45 LAN Cable X 1
Optional Accessories
  • Remote
  • Surveillance Device License Pack
  • VS240HD
  • VS360HD
Networking Protocols
  • CIFS
  • AFP
  • NFS
  • FTP
  • WebDAV
  • CalDAV
  • Telnet
  • SSH
  • SNMP
  • VPN (PPTP, OpenVPN)
Management
  • Auto DSM Upgrade
  • Push Notification – MSN/Skype/Mobile Devices
  • Email/SMS Notification
  • Customized Administrator/User Group
  • Syslog Support
  • DDNS Support
  • IPv6 Support
  • VLAN Support
  • PPPoE
  • Hotspot
  • Resource Monitor
  • Connection Manager
  • UPS Management
  • Custom Management UI HTTP/HTTPS Ports
Windows AD Domain Integration Domain Users login via Samba/AFP/FTP/File Station
Security
  • FTP over SSL/TLS
  • IP Auto-Block
  • Firewall
  • Encrypted Network Backup over Rsync
  • HTTPS Connection
Utilities
  • Synology Assistant
  • Synology Data Replicator
Supported Clients
  • Windows XP or later
  • Mac OS X 10.5 or later
  • Ubuntu 9.04 or later
Supported Browsers
  • Chrome
  • Firefox
  • Internet Explorer 8 or later
  • Safari 5 or later
  • Safari (iOS 5 or later on iPad)
  • Chrome (Android 4.0 on tablets)
Supported Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, ???????, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, ?eský, ???, ???, ????, ????
SpecsValue
