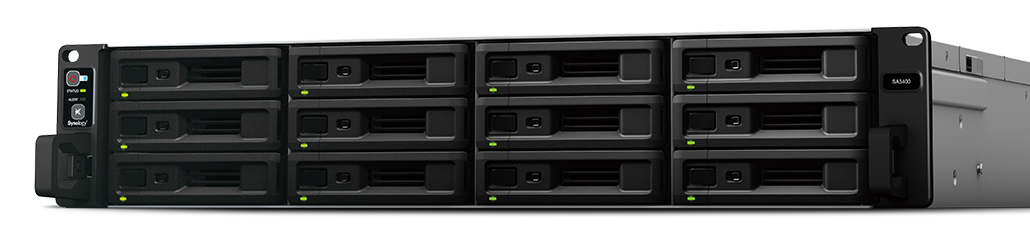

Synology SA3400 |
Who Offers the Best Price and Service for the Synology SA3400 NAS?
| Where to Buy a Product | |||
 |

|

|
VISIT RETAILER ➤ |
 |
|
|
VISIT RETAILER ➤ |
 |
|
|
VISIT RETAILER ➤ |
 |
|
|
VISIT RETAILER ➤ |
 |
|
|
VISIT RETAILER ➤ |
To be kept upto date on the latest price changes on the SA3400, use our Amazon price watch tool to get regular, tailored updates on when it is at the best price for your budget.
Your email will ONLY be used to update you. It will never be given to a third party without your consent!
FRESH DEALS
OPEN FULL LIST
ON YOUTUBE
Getting latest videos with a keyword: SA3400
RELATED POSTS
Best SA3400D price
Synology Unveils the SA3400D and UC3400: A High-Performance NAS with Dual Controllers
Best SA3400 price
PERFORMANCE:
| Specs | Measure | SA3400 |
|---|---|---|
| 10GbE iSCSI Random IOPS 4KB | Read IOPS/Write IOPS | 309620 / 143910 |
| 1GbE Web Server PHP Response Efficiency | Responses per second | 115249 |
| Aggregated 10GbE SMB Random IOPS 4KB | Read IOPS/Write IOPS | 258610 / 151293 |
| Aggregated 10GbE SMB Sequential Throughput 64KB | Read MBs/Write MBs | 6023 / 2811 |
| Aggregated 10GbE SMB Sequential Throughput via Encrypted Shared Folder 64KB | Read MBs/Write MBs | 4112 / 1766 |
| Specs | SA3400 |
Specification:
| Specs | Value |
|---|---|
| CPU-Model | Intel Xeon D-1541 |
| CPU Architecture | 64-bit |
| CPU Frequency | 8-core 2.1 (base) / 2.7 (turbo) GHz |
| Hardware Encryption Engine (AES-NI) | |
| System-memory | 16 GB DDR4 ECC RDIMM |
| Memory Module Pre-installed | 16 GB (16 GB x 1) |
| Total Memory Slots | 4 |
| Maximum Memory Capacity | 128 GB (32 GB x 4) |
| Notes | The specifications vary depending on system configuration and memory size. |
| Drive Bays | 12 |
| Maximum Drive Bays with Expansion Unit | 96 (RX1217sas x 7) / 180 (RX2417sas x 7) |
| Maximum Single Volume Size* |
|
| Hot Swappable Drive | |
| RJ-45 1GbE LAN Port | 4 (with Link Aggregation / Failover support) |
| RJ-45 10GbE LAN Port | 2 (with Link Aggregation / Failover support) |
| USB 3.0 Port | 2 |
| Expansion Port | 1 |
| PCIe Expansion | 2 x Gen3 x8 slots (x8 link) |
| Internal Drives |
|
| External Drives |
|
| Form-Factor | 2U |
| Size (Height x Width x Depth) | 88 mm x 482 mm x 724 mm |
| Weight | 14.5 kg |
| Rack Installation Support* | 4-post 19" rack (Synology Rail Kit - RKS1317) |
| System Fan | 80 mm x 80 mm x 4 pcs |
| Fan Speed Mode |
|
| Easy Replacement System Fan | |
| Power Recovery | |
| Noise Level* | 49.8 dB(A) |
| Scheduled Power On / Off | |
| Wake on LAN / WAN | |
| Power Supply Unit / Adapter | 500 W |
| Redundant Power Supply | |
| AC Input Power Voltage | 100 V to 240 V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power-Consumption |
137.17 W (Access) 70.95 W (HDD Hibernation) |
| British Thermal Unit |
468.04 BTU/hr (Access) 242.09 BTU/hr (HDD Hibernation) |
| Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Certification |
|
| Warranty | 5 Years |
| Environment | RoHS Compliant |
| Packaging Content |
|
| Optional Accessories |
|
| Maximum Internal Volume Number | 256 |
| Maximum iSCSI Target Number | 256 |
| Maximum iSCSI LUN | 512 |
| iSCSI LUN Clone/Snapshot, Windows ODX | |
| SSD Read / Write Cache (White Paper) | |
| SSD TRIM | |
| RAID Group | |
| Supported RAID Type |
|
| RAID Migration |
|
| Volume Expansion with Larger HDDs |
|
| Volume Expansion by Adding a HDD |
|
| Global Hot Spare Supported RAID Type |
|
| File Protocol | CIFS/AFP/NFS/FTP/WebDAV |
| Maximum Concurrent CIFS/AFP/FTP Connections | 4,000 |
| Windows Access Control List (ACL) Integration | |
| NFS Kerberos Authentication | |
| Maximum Local User Accounts | 16,000 |
| Maximum Local Groups | 512 |
| Maximum Shared Folder | 512 |
| Maximum Shared Folder Sync Tasks | 32 |
| Synology High Availability | |
| Log Center | |
| Syslog Events per Second | 3,000 |
| VMware vSphere 6 with VAAI | |
| Windows Server 2016 | |
| Windows Server 2019 | |
| Citrix Ready | |
| OpenStack | |
| Networking Protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Supported Browsers |
|
| Supported Language | English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 |
| Antivirus by McAfee (Trial) | |
| Central Management System | |
| Synology Chat | |
| Maximum Users | 3,400 |
| Document Viewer | |
| Download Station | |
| Maximum Concurrent Download Tasks | 80 |
| exFAT Access (Optional) | |
| Synology MailPlus / MailPlus Server | |
| Free Email Accounts | 5 (Licenses required for additional accounts) |
| Maximum Number of Concurrent Users | 1,100 |
| Maximum Server Performance | 4,471,000 emails per day, approx. 136 GB |
| Media Server | |
| DLNA Compliance | |
| Moments | |
| Facial Recognition | |
| Subject Recognition | |
| Auto Color & Rotate | |
| Moments Select | |
| PetaSpace | |
| Snapshot Replication | |
| Maximum Snapshots per Shared Folder | 1,024 |
| Maximum of System Snapshots | 65,536 |
| Surveillance Station | |
| Maximum IP cam (Licenses required) | 100 (including 2 Free License) (See All Supported IP Cameras) |
| Total FPS (H.264) |
3000 FPS @ 720p (1280x720) 2800 FPS @ 1080p (1920x1080) 1200 FPS @ 3M (2048x1536) 700 FPS @ 5M (2591x1944) 500 FPS @ 4K (3840x2160) |
| Total FPS (H.265) |
3000 FPS @ 720p (1280x720) 3000 FPS @ 1080p (1920x1080) 2400 FPS @ 3M (2048x1536) 1300 FPS @ 5M (2591x1944) 800 FPS @ 4K (3840x2160) |
| Total FPS (MJPEG) |
900 FPS @ 720p (1280x720) 650 FPS @ 1080p (1920x1080) 490 FPS @ 3M (2048x1536) 320 FPS @ 5M (2591x1944) |
| Synology Drive | |
| Recommended Number of Hosted Files | 5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above) |
| Recommended Number of Concurrent Sync Clients | 2,000 (the number of connections that can be maintained when the recommended number of hosted files was reached) |
| Synology Office | |
| Video Station | |
| Video Transcoding | Group 1 - Type 1 (See more) |
| Maximum Transcoding Channel Number | 1 channel, 30 FPS @ 1080p(1920×1080), H.264 (AVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1 |
| Virtual Machine Manager | |
| Recommended Virtual Machine Instances | 16 (Learn more) |
| VPN Server | |
| Maximum Connections | 40 |
| Specs | Value |
