UGREEN US3000 NAS UPS Review

Review of the UGREEN NAS UPS – Is the US3000 120W UPS Any Good?

The UGREEN US3000 is a 120 W DC uninterruptible power supply developed specifically for UGREEN NAS devices that rely on an external DC power brick. Unlike conventional UPS systems that convert AC to DC, this model outputs direct 12 V DC power with a zero-second transfer time, ensuring there is no interruption during a power loss. It is equipped with a 12,000 mAh lithium-ion battery pack made up of four 3000 mAh cells, providing a rated energy of 43.2 Wh and up to around ten minutes of backup time depending on workload. Measuring 120.6 × 80.5 × 29.6 mm and weighing approximately 439 g, the US3000 is compact enough for desktop environments where space is limited. Beyond supplying short-term emergency power, it integrates with UGOS Pro software via a USB communication cable, allowing automated shutdown, timed standby, and restart once power is restored. This focus on seamless hardware and software compatibility makes the US3000 notable for users running UGREEN NAS systems that need to mitigate risks of data corruption caused by sudden outages.

UGREEN US3000 UPS Review – Quick Conclusion

The UGREEN US3000 is a purpose-built DC UPS that prioritizes seamless integration with UGREEN NAS systems over broad flexibility. Its compact aluminum chassis houses a 12,000 mAh lithium-ion battery pack capable of delivering 120 W output with zero-second transfer time, ensuring that a connected NAS continues running long enough to perform a safe shutdown. Unlike traditional AC-based UPS units, it avoids conversion inefficiency by supplying direct DC power, while its USB link with UGOS Pro enables automatic shutdown, timed standby, and restart functions. Testing confirmed reliable operation across scenarios from immediate power loss to scheduled shutdowns, with system logs capturing events in under two seconds. However, its design is deliberately narrow in scope: it supports only one NAS at a time, does not extend to routers or switches, and offers limited runtime of around ten minutes under load. For users operating within the UGREEN ecosystem, it provides an efficient and well-integrated safeguard against data corruption during outages. For those needing multi-device protection or long-duration backup, its constrained design and compatibility limit its broader applicability.

BUILD QUALITY - 9/10

HARDWARE - 9/10

EASE OF USE - 10/10

PRICE - 9/10

VALUE - 9/10

9.2

PROS

👍🏻Zero-second transfer time ensures uninterrupted NAS operation during outages.
👍🏻Compact and lightweight aluminum chassis with integrated heat dissipation.
👍🏻Direct DC pass-through eliminates inefficient AC/DC conversion.
👍🏻Full integration with UGOS Pro, including shutdown automation and restart control.
👍🏻Lithium-ion battery pack provides higher energy density than lead-acid designs.
👍🏻Purpose-built for UGREEN NAS systems with native USB communication support

CONS

👎🏻Limited compatibility, works only with UGREEN NAS models that use external DC input.
👎🏻Short runtime and single-device capacity make it unsuitable for extended or multi-system protection.

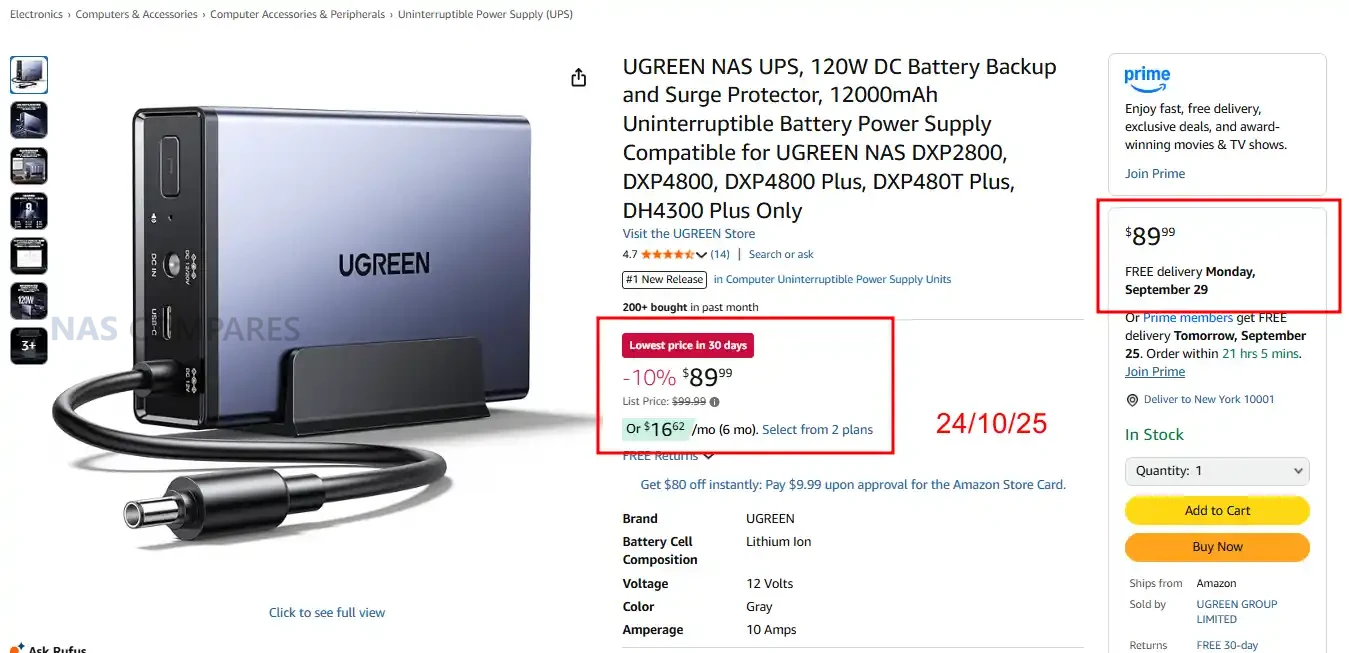

Check Amazon for the UGREEN US3000 UPS

Check AliExpress for the UGREEN US3000 UPS

Why the UGREEN US3000 UPS is Important/Interesting

Uninterruptible power supplies are not new, but most consumer models are designed for general computing and rely on bulky lead-acid batteries with AC pass-through. The UGREEN US3000 differs by offering a DC-to-DC solution that matches the external power design of UGREEN NAS units. This means it eliminates the inefficiency of double conversion and avoids the audible transfer delays that can occur with traditional UPS hardware. With a 120 W output ceiling, it is tailored for single-device use rather than multiple systems, but that specificity ensures closer integration with the NAS’s power and shutdown controls. From a technical perspective, its lithium-ion battery pack offers greater energy density than lead-acid, allowing the device to remain compact while still covering several minutes of safe system operation during an outage.

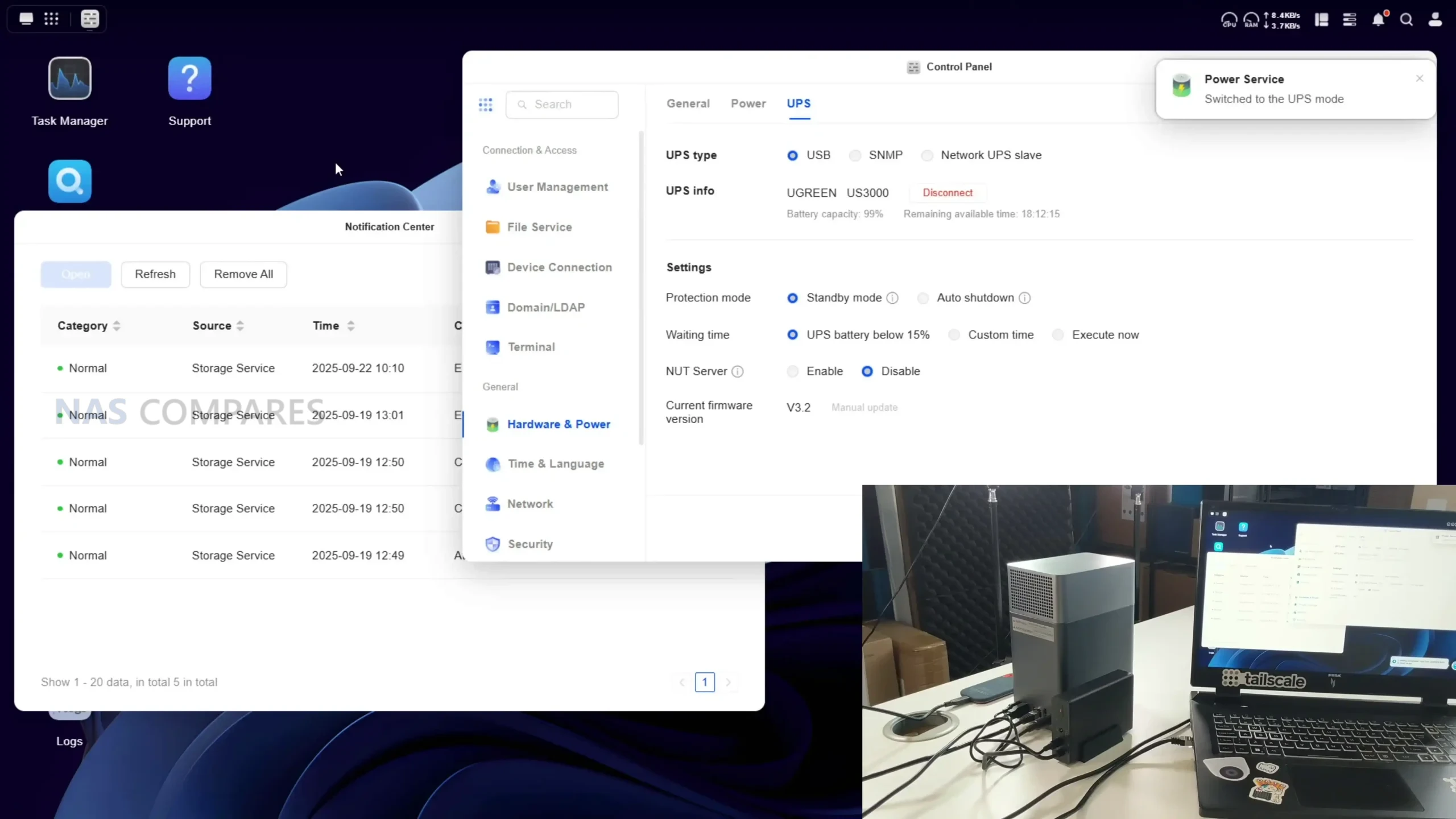

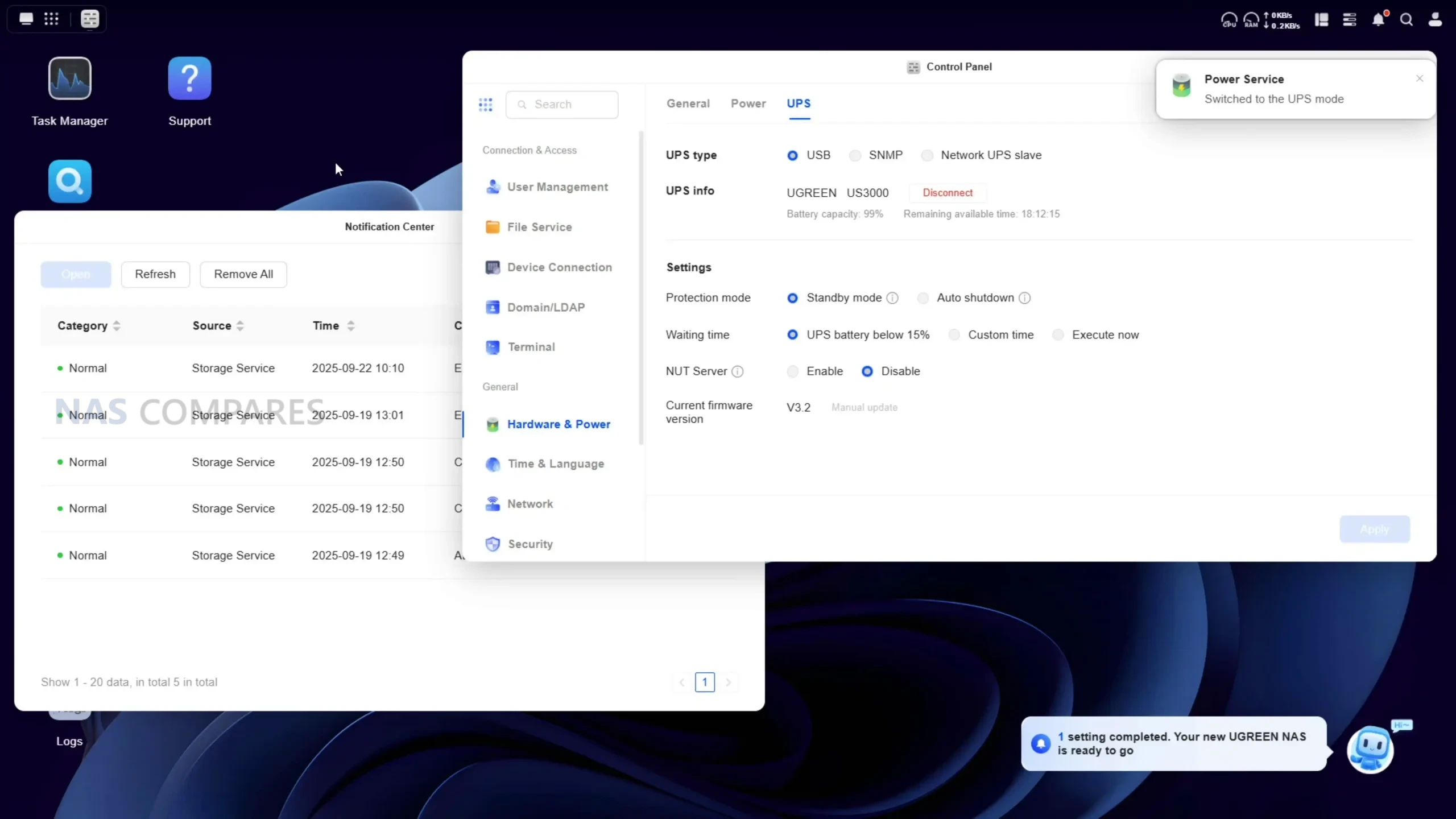

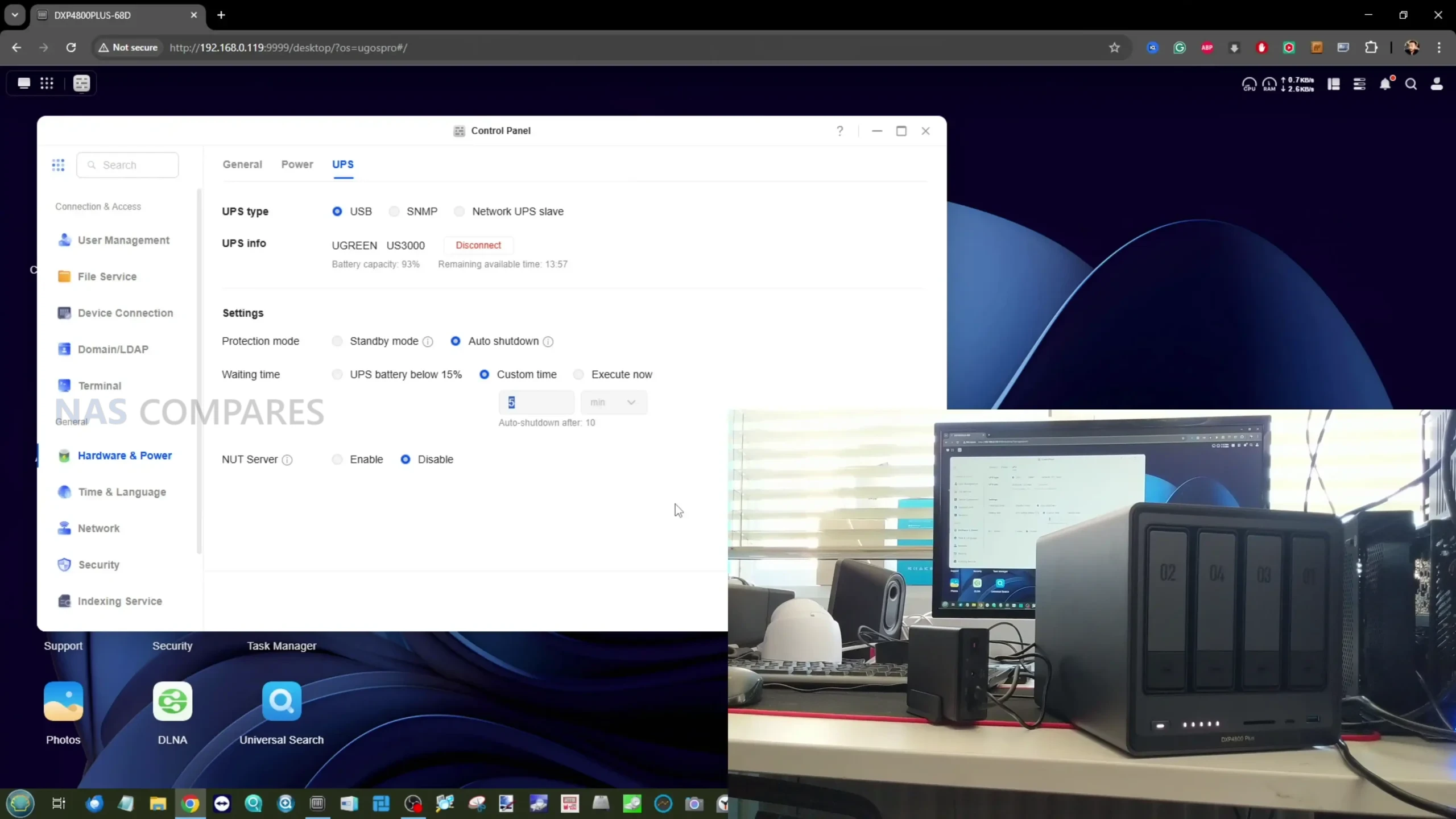

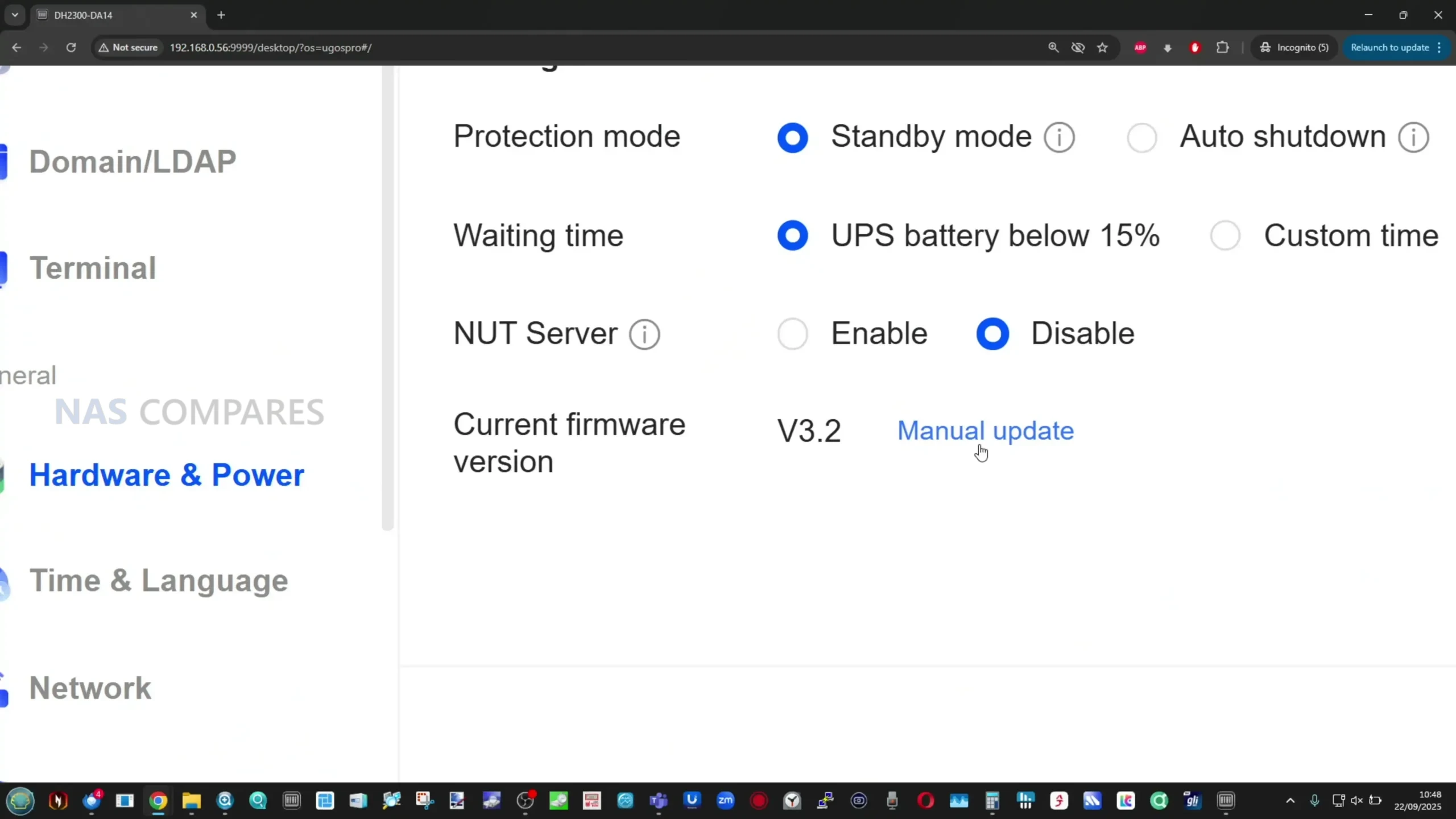

The importance of this UPS becomes clearer when examining how it interacts with UGOS Pro. Unlike generic solutions, the US3000 communicates directly with the NAS operating system via a USB connection, exposing monitoring and automation options in the control panel. Users can configure automatic shutdown after a set period, trigger standby to conserve remaining charge, or enable auto-restart once mains power returns. These features are not just convenient but directly address the risks of corrupted writes, incomplete backups, or damaged RAID arrays during sudden power loss. Given that UGREEN NAS systems are designed for small offices and home use, where environments may not include larger enterprise-grade UPS equipment, the US3000 effectively bridges that gap by offering a purpose-built, compact, and integrated safeguard.

UGREEN US3000 UPS Review – Design

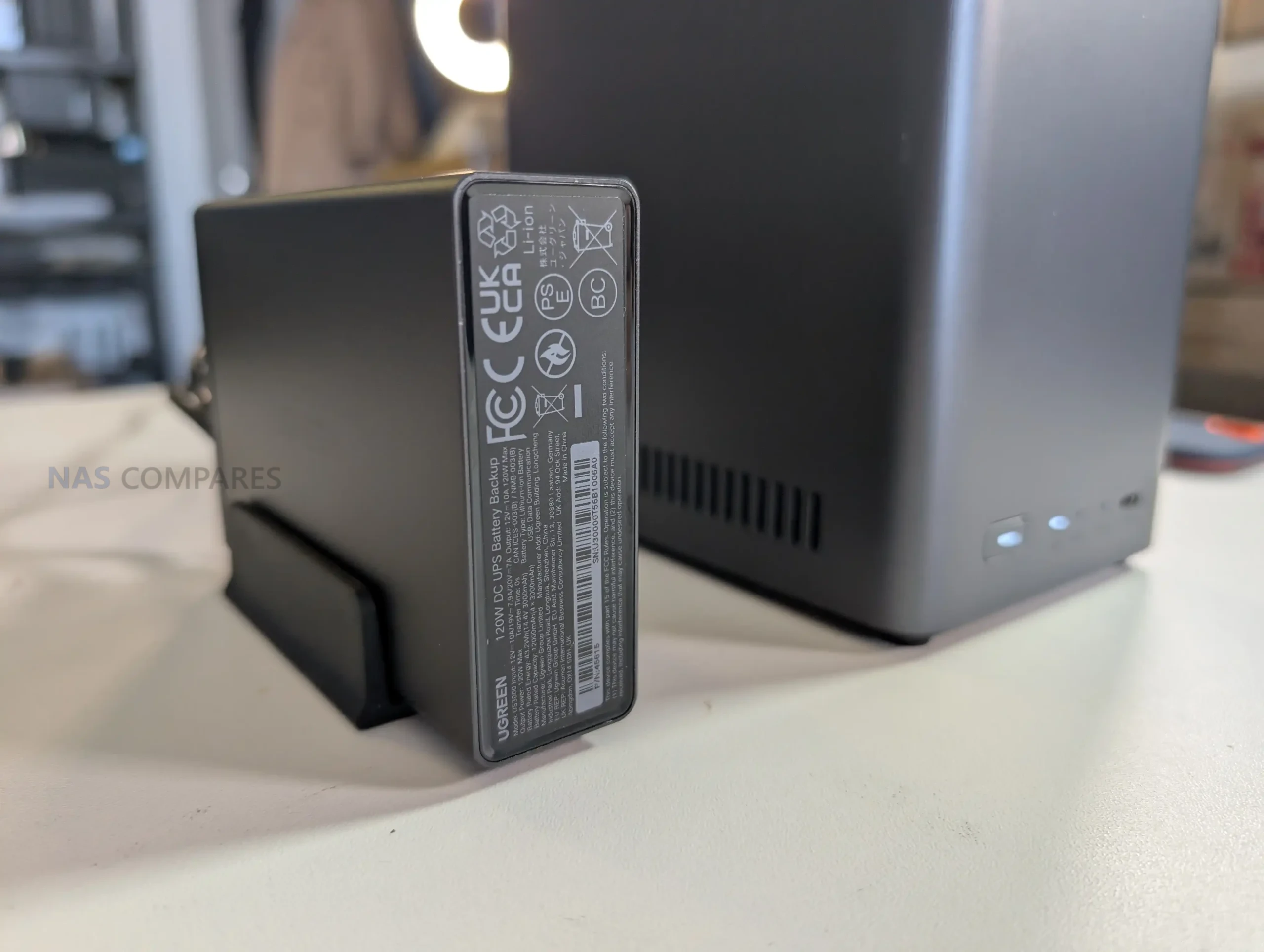

The UGREEN US3000 follows a compact, rectangular form factor with dimensions of 120.6 mm in length, 80.5 mm in width, and 29.6 mm in thickness. Its weight of just under 440 g makes it relatively lightweight for a UPS, reflecting its focus on portability and single-device deployment rather than large-scale power protection. The outer chassis is made from anodized and sandblasted aluminum alloy, which gives it improved durability compared with plastic housings and also aids in passive heat dissipation. The choice of materials ensures a consistent finish that aligns visually with UGREEN’s NAS enclosures, providing an integrated appearance when the two devices are used together on a desktop.

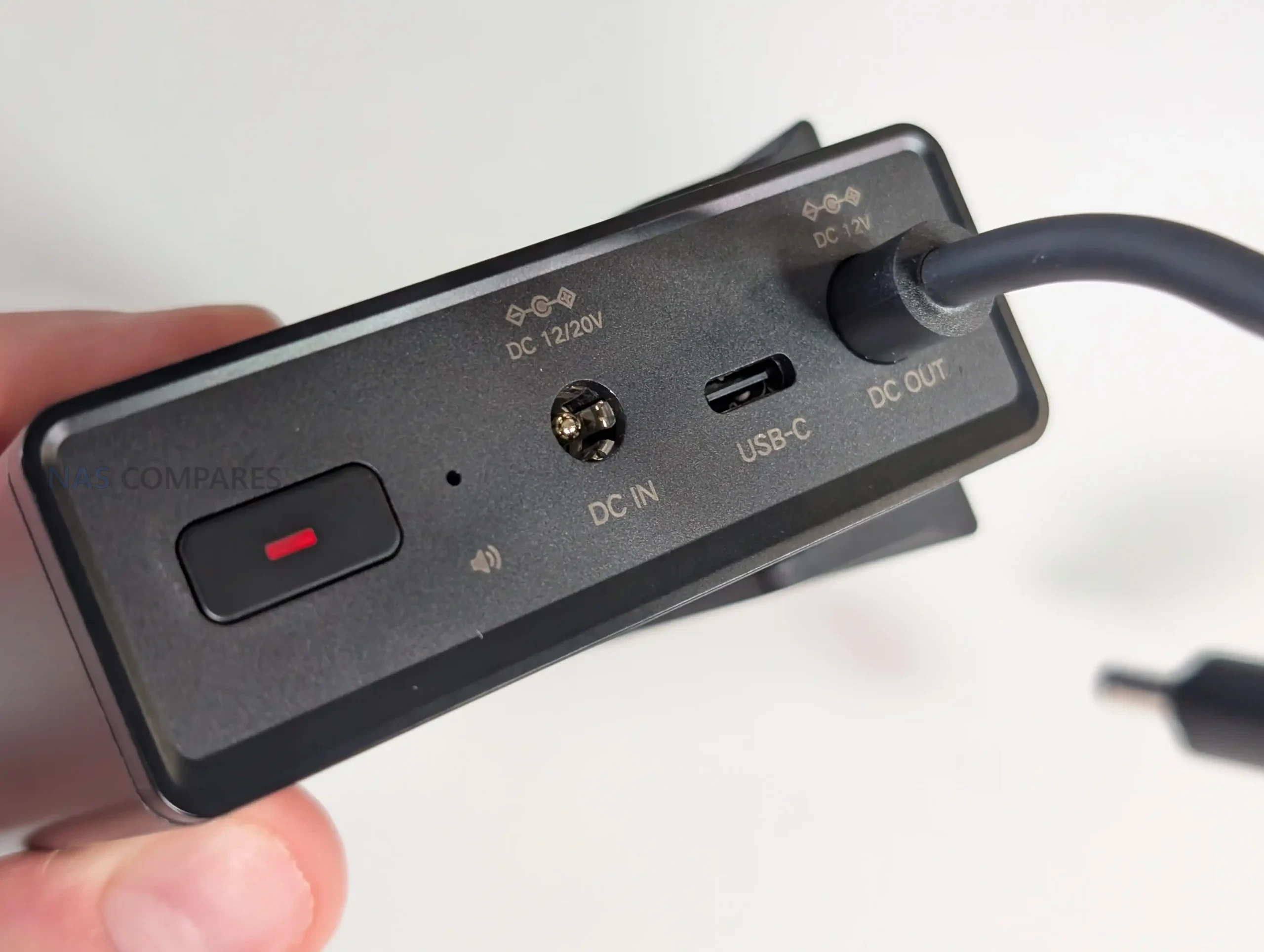

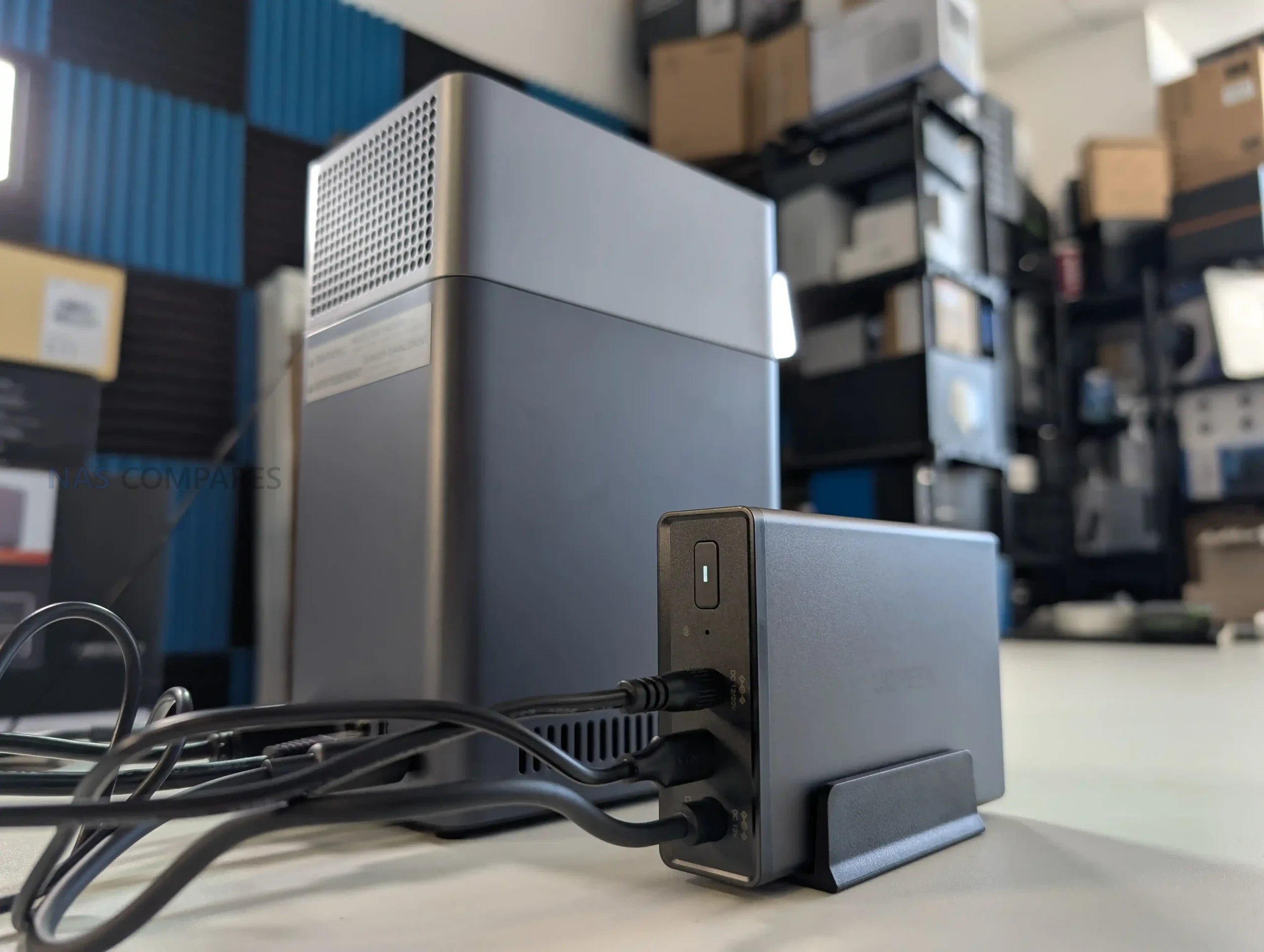

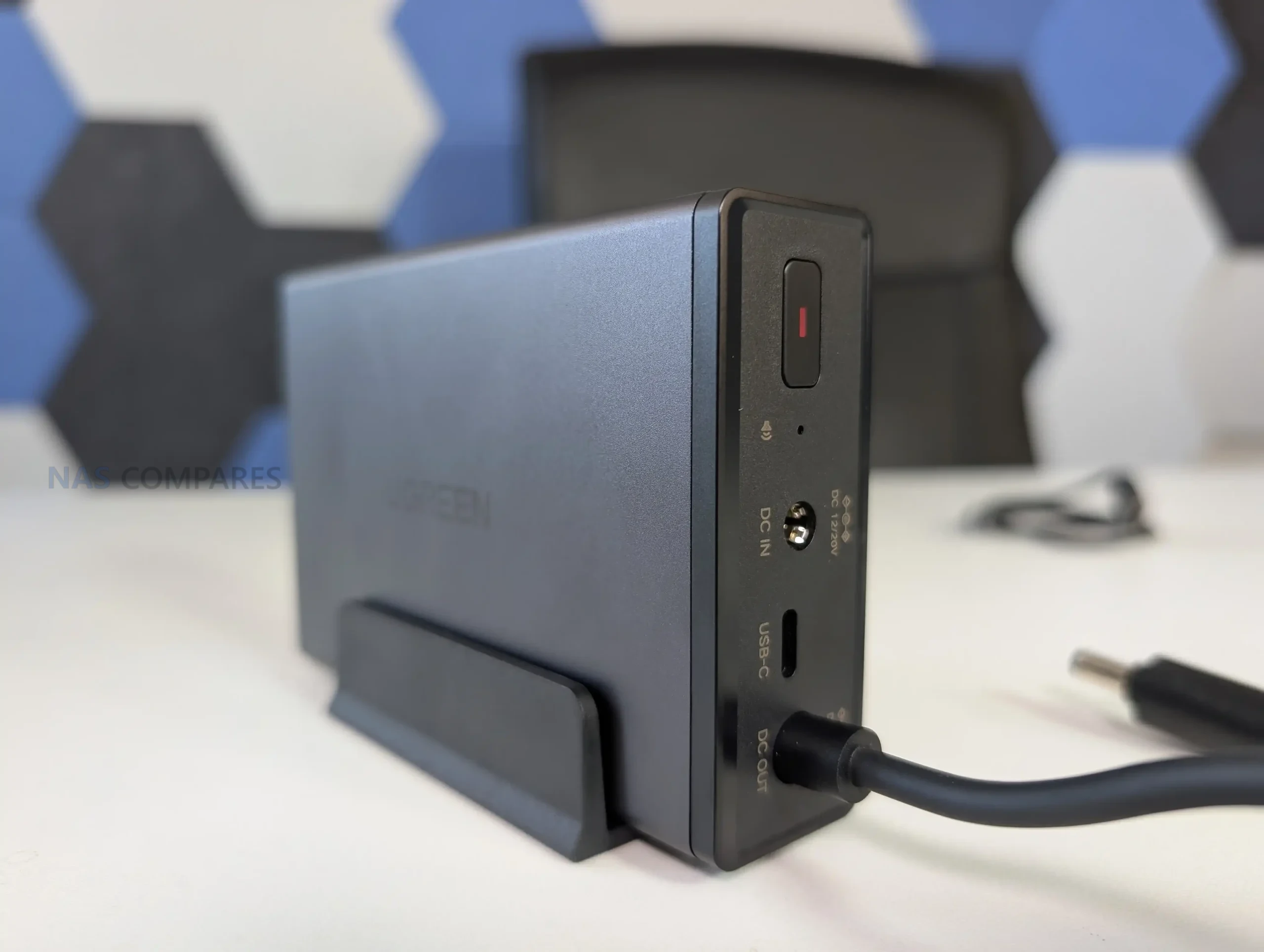

Connectivity is handled entirely through DC and USB ports positioned on a single side of the device. The panel includes a DC input, a DC output, a USB-C port for data communication, and a power button. The fixed DC cable has a length of approximately 28 cm, while the included USB-A to USB-C cable measures around 53 cm, allowing flexible placement next to a NAS system without excess cabling. Each port and control is clearly labeled with printed icons, reducing the likelihood of incorrect setup. Unlike conventional UPS systems that feature multiple AC sockets, the US3000 focuses on a single dedicated output, reflecting its intended role as a companion unit for UGREEN NAS models rather than a general-purpose UPS.

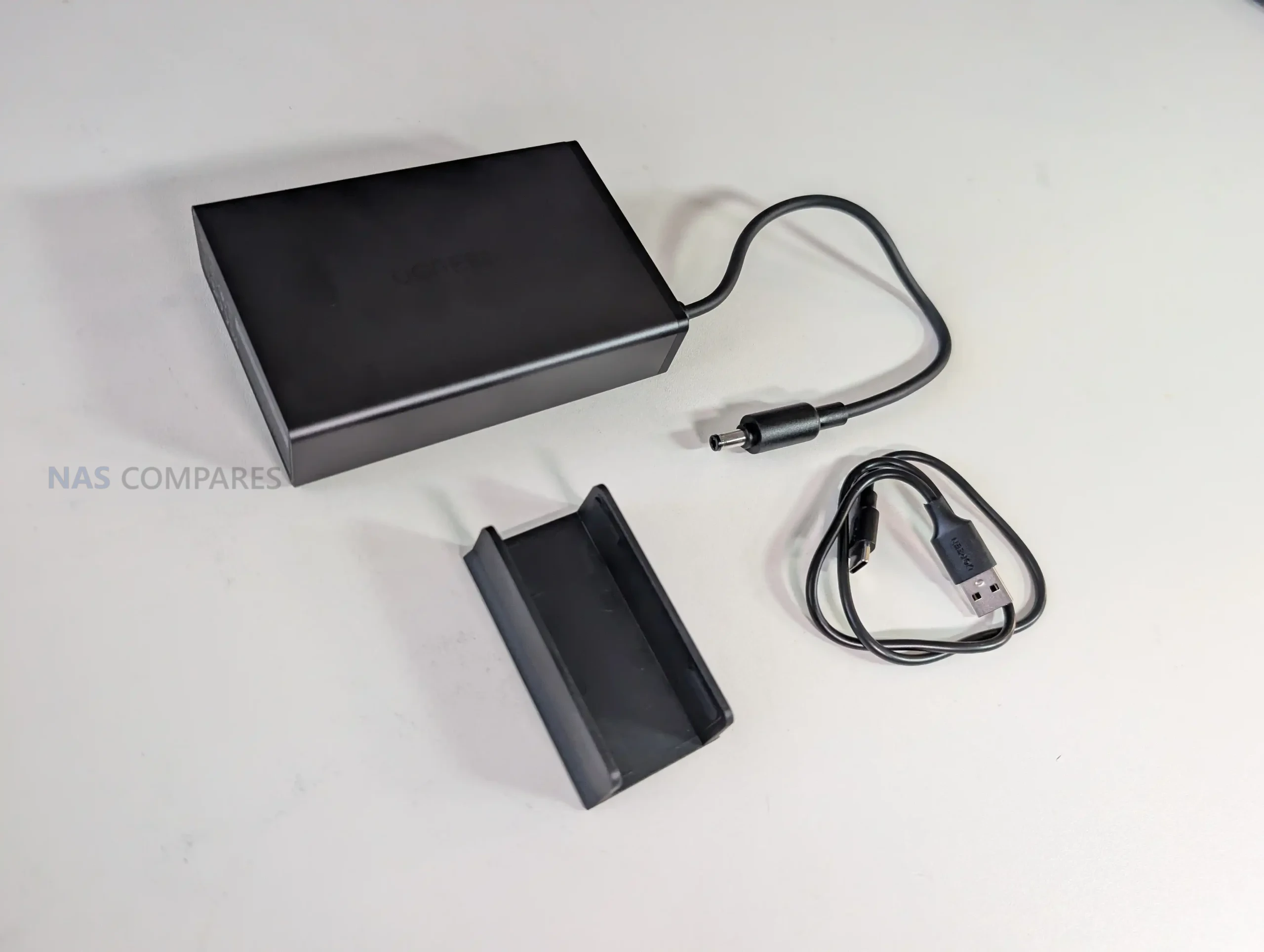

The packaging of the device mirrors UGREEN’s approach with its NAS line, offering clear product imagery and specification highlights on the box exterior. Inside, the unit is provided with a base stand for stable positioning, the aforementioned data cable, and basic documentation. This is a minimalist package compared to conventional UPS units, which often include multiple adaptors or accessories, but the streamlined approach ensures that setup remains straightforward for the intended NAS integration. The inclusion of a stand is particularly useful given the slim design, as it helps keep the UPS stable in vertical placement while maintaining airflow around the chassis.

From a design perspective, the emphasis is on simplicity and integration rather than flexibility. The device does not feature multiple voltage outputs, nor does it support powering unrelated devices such as routers or switches. Instead, its DC pass-through design, small footprint, and single-device orientation mark it as a specialized tool. This aligns with UGREEN’s approach of building a controlled ecosystem around its NAS systems, where accessories are engineered for direct compatibility. The US3000 therefore sits between consumer-grade battery packs and enterprise UPS units, offering a focused solution that fits into a narrow but clearly defined usage scenario.

UGREEN US3000 UPS Review – Internal Power Design

Inside the UGREEN US3000 is a straightforward but carefully constructed layout built around a 12,000 mAh lithium-ion battery pack. The pack consists of four SunPower INR18650-3000 cells, each rated at 3000 mAh and 11.1 Wh, connected in series to deliver a combined rated energy of 43.2 Wh at 14.4 V. The cells are wrapped in foam insulation and secured with adhesive to minimize movement, with spot-welded nickel strips linking them. Additional barley paper insulation is applied around the terminals for added protection. This design choice allows the UPS to maintain compact dimensions while ensuring sufficient runtime for controlled NAS shutdowns.

Battery management is handled by a Chipsea CBM8580KV6NT protection IC. This chip monitors voltage, current, and temperature across the pack, ensuring safe charging and discharge cycles. It communicates with the system host via SMBus 3.1, which enables the UPS to relay real-time status to the NAS when connected through USB. Supporting components include current sense resistors, thermistors, and MOSFETs for switching and power regulation. Together, these ensure not only that the battery operates safely but also that the UPS can reliably deliver 120 W maximum output without voltage instability.

Voltage conversion is performed by a dual-stage arrangement. A Texas Instruments TPS55289 synchronous buck-boost converter handles a wide input range up to 30 V and can output between 0.8 V and 22 V. Alongside this, a SouthChip SC8002 synchronous buck controller manages current limiting and efficiency across dual channels. Power MOSFETs from CR MICRO and NCEPower are used for pass-through control and output switching, while a GigaDevice GD32F303RCT6 Cortex-M4 microcontroller coordinates the overall system, including communication with the NAS. Passive cooling, adhesive reinforcement on inductors and capacitors, and fuses at both input and battery ends further underline the design focus on stability and safety.

UGREEN US3000 UPS Review – Testing with UGREEN NASync Systems

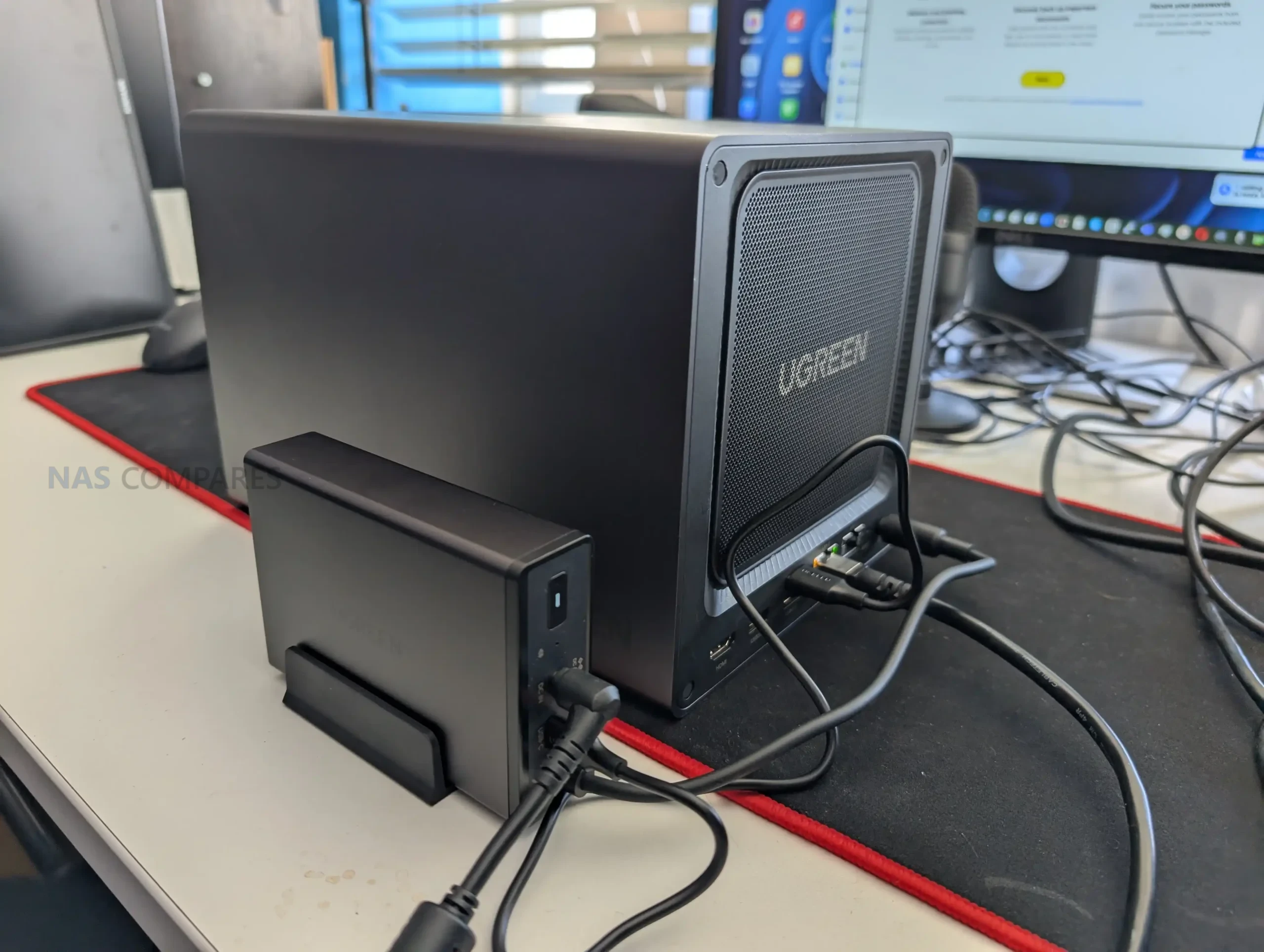

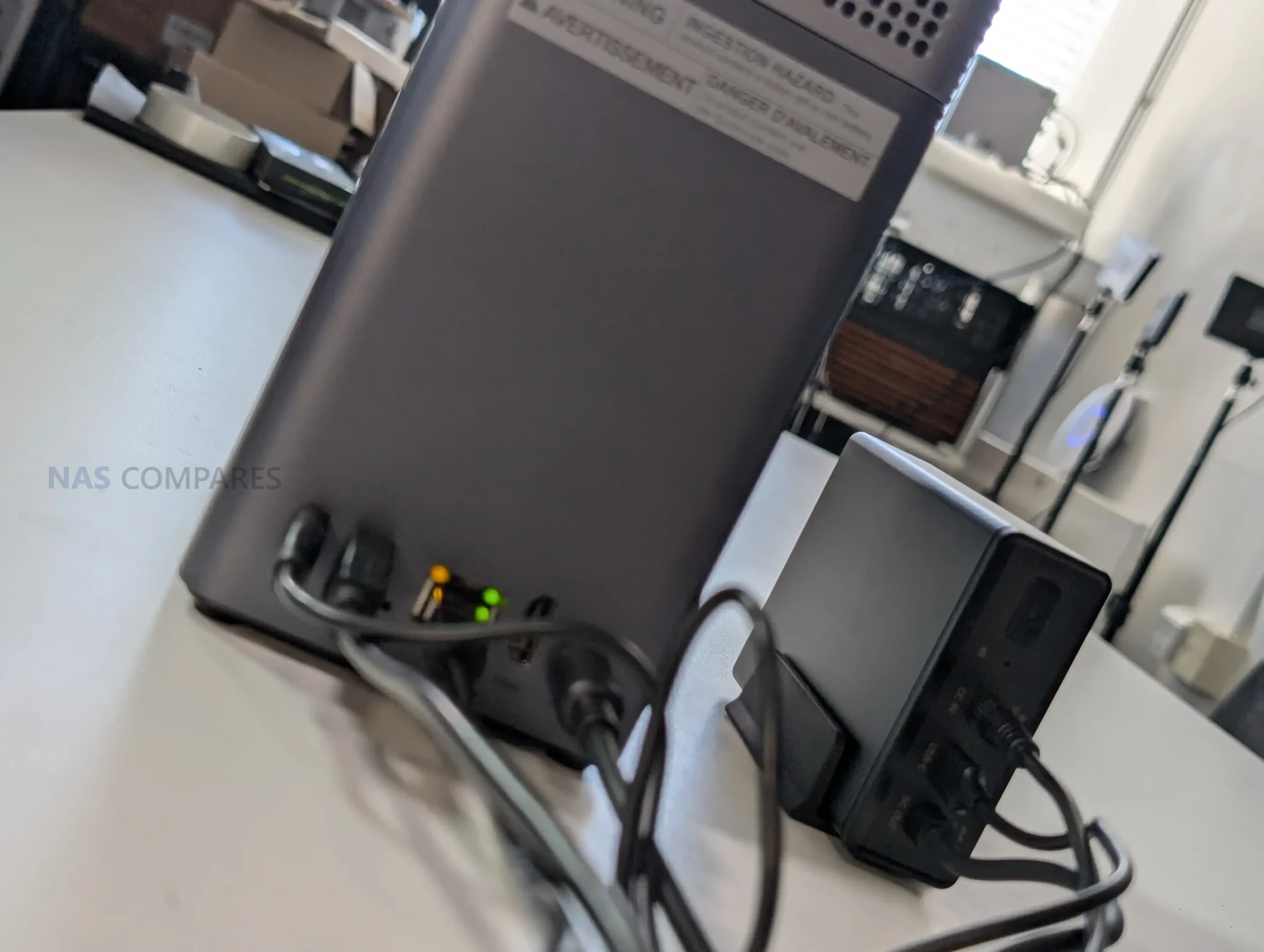

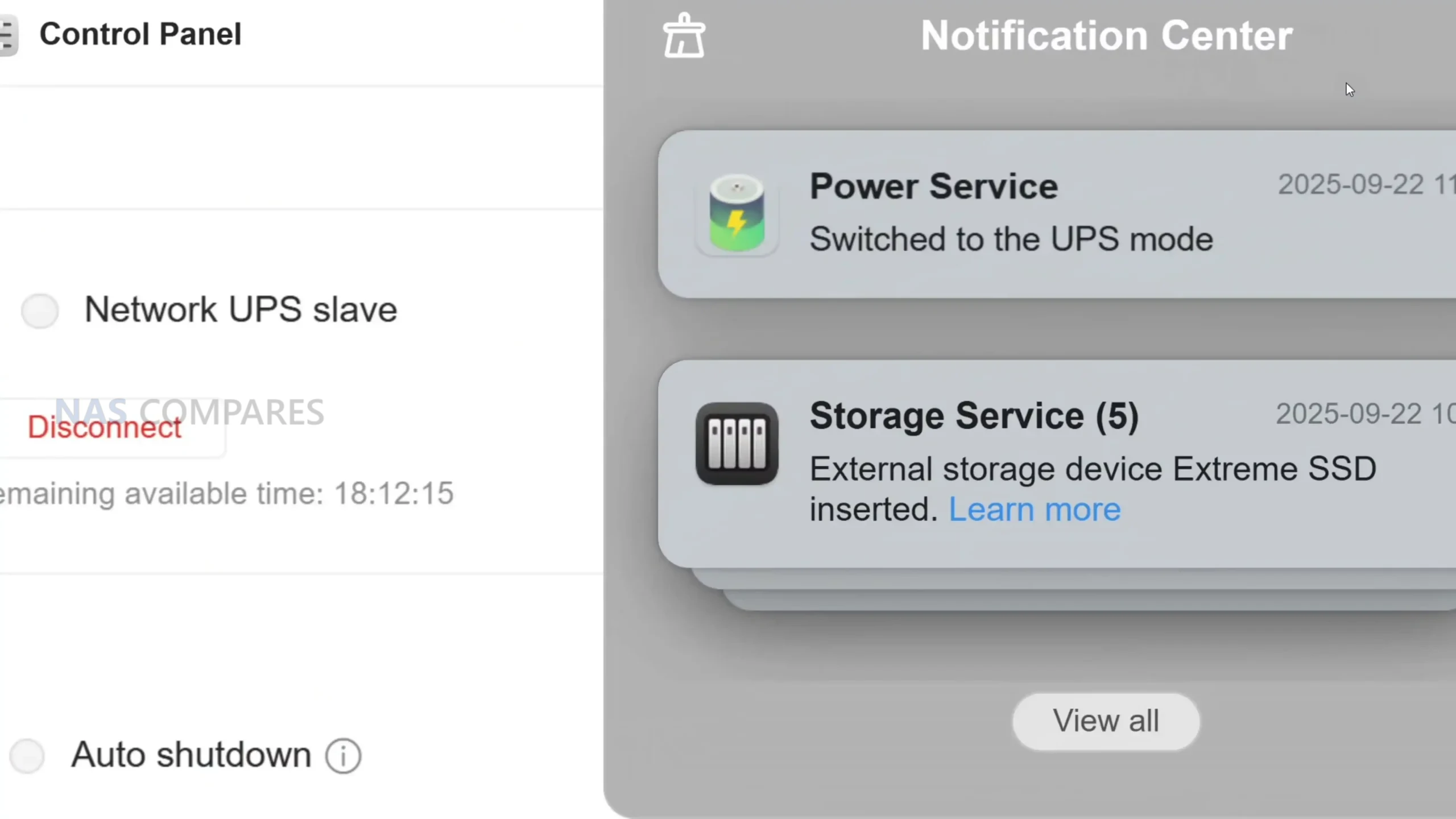

To evaluate the UGREEN US3000, three operational scenarios were simulated: immediate power loss with continued operation, automatic shutdown under UPS control, and timed shutdown with automatic restart when power returned. In each case, the NAS was connected to the UPS using both the DC input and USB communication cable to ensure full integration with UGOS Pro. The first test involved disconnecting mains power to replicate an outage. The NAS continued running without interruption, with the transfer to battery occurring instantly. System logs registered the event in under two seconds, and normal file access, media playback, and downloads remained available until the battery level dropped to the configured threshold.

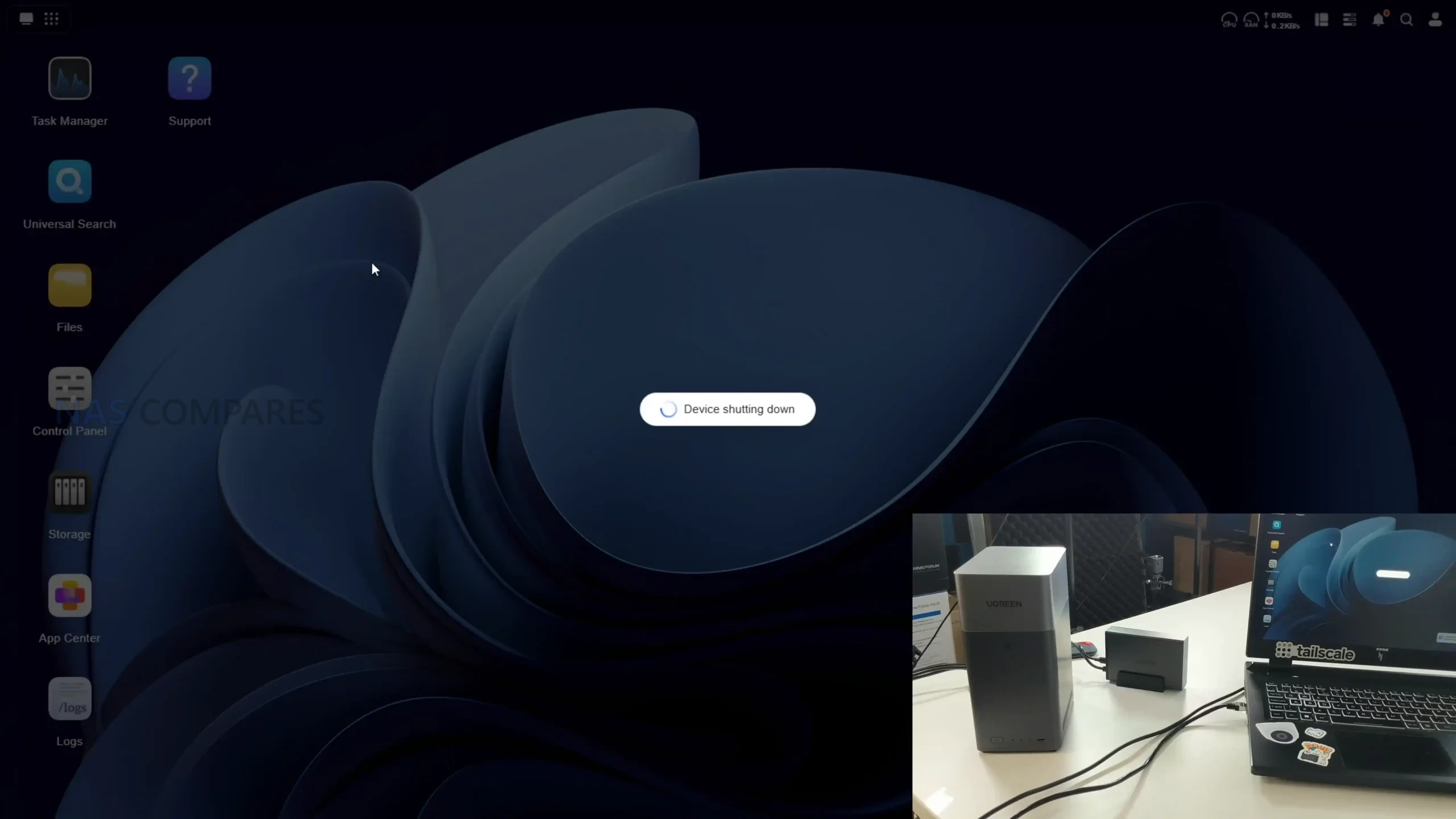

In the second test, the system was configured to shut down automatically as soon as the UPS switched to battery mode. Once power was removed, the NAS immediately began its shutdown process. This test showed that the UPS integration with UGOS Pro allowed a fast and orderly shutdown sequence, preventing data corruption or incomplete writes. The reaction time was near instantaneous, and the system was powered down safely without user intervention. This mode may be best suited for environments where uptime during an outage is less critical than ensuring rapid data protection.

A third test focused on timed shutdown, with the UPS set to keep the NAS running for five minutes before initiating a safe power-off. Once mains power was disconnected, the NAS continued operating for the specified period, then shut down as configured. After power was restored, the UPS automatically triggered a restart of the NAS, returning it to full operation within a few minutes. This confirmed the UPS’s ability not only to handle outages but also to manage recovery without manual restart, which is beneficial for users who may not be present during a power failure.

During all tests, the device’s limitations became apparent. With a 120 W maximum output and battery capacity limited to 43.2 Wh, it cannot sustain extended operation. Its role is restricted to ensuring controlled shutdowns and short bridging periods rather than providing long-term backup. Furthermore, it supports only one NAS system via DC pass-through, so it cannot protect additional hardware such as routers or switches. Nevertheless, within its defined parameters, the UPS consistently delivered seamless transitions and executed software-triggered events reliably, confirming that its functionality matches its intended scope.

UGREEN US3000 UPS Review – Conclusion & Verdict

The UGREEN US3000 fills a specific role: protecting UGREEN NAS devices from sudden power loss. Its design avoids the bulk and inefficiency of conventional AC-based UPS units by delivering DC pass-through power with zero transfer time. In practice, it provides just enough runtime for the NAS to perform a controlled shutdown, while its software integration ensures automation of both power-off and restart processes. With lithium-ion cells, a compact aluminum chassis, and close alignment with UGOS Pro features, it is engineered as a dedicated accessory rather than a universal power backup solution.

As a result, its usefulness is limited to scenarios where a single UGREEN NAS is the priority. It does not offer multiple outputs or extended backup duration, making it unsuitable for wider network coverage or enterprise requirements. Instead, the US3000 should be viewed as a narrowly focused safeguard that addresses one problem reliably: preventing data corruption and incomplete writes during outages. For users within the UGREEN ecosystem, it is an effective solution, but for broader applications, its scope remains intentionally constrained.

Check Amazon for the UGREEN US3000 UPS

Check AliExpress for the UGREEN US3000 UPS

PROs of the UGREEN US3000 UPS

CONs of the UGREEN US3000 UPS

Zero-second transfer time ensures uninterrupted NAS operation during outages. Compact and lightweight aluminum chassis with integrated heat dissipation. Direct DC pass-through eliminates inefficient AC/DC conversion. Full integration with UGOS Pro, including shutdown automation and restart control. Lithium-ion battery pack provides higher energy density than lead-acid designs. Purpose-built for UGREEN NAS systems with native USB communication support

Limited compatibility, works only with UGREEN NAS models that use external DC input. Short runtime and single-device capacity make it unsuitable for extended or multi-system protection.
