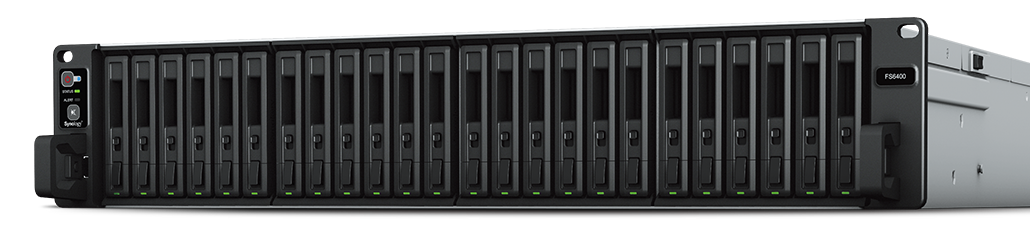

Synology FS6400



Who Offers the Best Price and Service for the Synology FS6400 NAS?



WRONG COUNTRY? CLICK ON THE FLAG TO CHANGE IT
To be kept upto date on the latest price changes on the FS6400, use our Amazon price watch tool to get regular, tailored updates on when it is at the best price for your budget.
Your email will ONLY be used to update you. It will never be given to a third party without your consent!
Create Amazon Price Watch
Price Watch
We'll send an email to When the Amazon Price Drops to
Last updated: 2024-04-23 15:42 [Links below are Amazon affiliate links]
Synology - DDR4 - Module - 16 GB - DIMM 288-pin - 2666 MHz / PC4-21300 - 1.2 V - Registered - E 🛈424.770 USD 1.71% OFF
Synology 24 Bay NAS FlashStation FS6400 (Diskless) 🛈13385.210 USD


FRESH DEALS
OPEN FULL LIST


ON YOUTUBE
Getting latest videos with a keyword: FS6400

RELATED POSTS

Best FS6400 price
Synology FS6400 FlashStation NAS Hardware Review
Synology FS6400 FlashStation NAS Price, Specifications and Details
Synology FS6400 FlashStation NAS Unveiled in Taipei
New Synology DS220+, DVA3219, FS6400 and UC3200 NAS Revealed


PERFORMANCE:
SpecsMeasureFS6400
10GbE iSCSI Random IOPS 4KBRead IOPS/Write IOPS476412 / 226141
10GbE iSCSI Random IOPS with HCIbench 4KBRead IOPS/Write IOPS436456 / 211763
Aggregated 10GbE SMB Random IOPS 4KBRead IOPS/Write IOPS444459 / 224612
Aggregated 10GbE SMB Sequential Throughput 64KBRead MBs/Write MBs7005 / 4726
Aggregated 10GbE SMB Sequential Throughput via Encrypted Shared Folder 64KBRead MBs/Write MBs5668 / 2965
SpecsFS6400

Specification:
SpecsValue
CPU-Model Intel Xeon Silver 4110 x 2
CPU Architecture 64-bit
CPU Frequency 8-core 2.1 (base) / 3.0 (turbo) GHz
Hardware Encryption Engine (AES-NI)
System-memory 32 GB DDR4 ECC RDIMM
Memory Module Pre-installed 32 GB (16 GB x 2)
Total Memory Slots 16
Maximum Memory Capacity 512 GB (32 GB x 16)
Notes The specifications vary depending on system configuration and memory size.
Drive Bays 24
Maximum Drive Bays with Expansion Unit 48 (RX1217sas x 2) / 72 (FX2421* x 2)
Maximum Single Volume Size*
  • 200 TB (for RAID 5 or RAID 6 groups only)
  • 108 TB
Hot Swappable Drive
RJ-45 1GbE LAN Port 2 (with Link Aggregation / Failover support)
RJ-45 10GbE LAN Port 2 (with Link Aggregation / Failover support)
USB 3.0 Port 2
Expansion Port 1
PCIe Expansion 2 x Gen3 x8 slots (x8 link)
Internal Drives
  • Btrfs
  • EXT4
External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT*
Form-Factor 2U
Size (Height x Width x Depth) 88 mm x 482 mm x 724 mm
Weight 17.26 kg
Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKS1317)
System Fan 80 mm x 80 mm x 4 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan
Power Recovery
Noise Level* 53.7 dB(A)
Scheduled Power On / Off
Wake on LAN / WAN
Power Supply Unit / Adapter 800 W
Redundant Power Supply
AC Input Power Voltage 100 V to 240 V AC
Power Frequency 50/60 Hz, Single Phase
Power-Consumption 288.49 W (Access)
145.8 W (HDD Hibernation)
British Thermal Unit 984.37 BTU/hr (Access)
497.49 BTU/hr (HDD Hibernation)
Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • EAC
  • VCCI
  • RCM
  • KC
  • FCC
  • CE
  • BSMI
Warranty 5 Years
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
Optional Accessories
  • DDR4 ECC RDIMM: D4RD-2666-16G*/D4RD-2666-32G
  • Expansion Units: FX2421*/RX1217sas
  • 2.5" SATA SSD: SAT5200
  • 10GbE Network Interface Card: E10G18-T2/E10G18-T1/E10G17-F2
  • Rail Kit Sliding: RKS1317
  • VisualStation: VS960HD/VS360HD
  • Surveillance Device License Pack
Maximum Internal Volume Number 256
Maximum iSCSI Target Number 256
Maximum iSCSI LUN 512
iSCSI LUN Clone/Snapshot, Windows ODX
SSD Read / Write Cache (White Paper)
SSD TRIM
RAID Group
Supported RAID Type
  • RAID F1
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
RAID Migration
  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
  • RAID 5 to RAID 6
Volume Expansion with Larger HDDs
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
Volume Expansion by Adding a HDD
  • RAID F1
  • JBOD
  • RAID 5
  • RAID 6
Global Hot Spare Supported RAID Type
  • RAID F1
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
File Protocol CIFS/AFP/NFS/FTP/WebDAV
Maximum Concurrent CIFS/AFP/FTP Connections 8,000
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
Maximum Local User Accounts 16,000
Maximum Local Groups 512
Maximum Shared Folder 512
Maximum Shared Folder Sync Tasks 32
Synology High Availability
Log Center
Syslog Events per Second 3,000
VMware vSphere 6 with VAAI
Windows Server 2016
Windows Server 2019
Citrix Ready
OpenStack
Networking Protocols SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers
  • Chrome
  • Firefox
  • Edge
  • Internet Explorer 10 onwards
  • Safari 10 onwards
  • Safari (iOS 10 onwards)
  • Chrome (Android 6.0 onwards)
Supported Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
Antivirus by McAfee (Trial)
Central Management System
Synology Chat
Maximum Users 3,400
Document Viewer
exFAT Access (Optional)
Synology MailPlus / MailPlus Server
Free Email Accounts 5 (Licenses required for additional accounts)
Maximum Number of Concurrent Users 2,200
Maximum Server Performance 5,721,000 emails per day, approx. 174GB
Snapshot Replication
Maximum Snapshots per Shared Folder 1,024
Maximum of System Snapshots 65,536
Surveillance Station
Maximum IP cam (Licenses required) 128 (including 2 Free License) (See All Supported IP Cameras)
Total FPS (H.264) 3840 FPS @ 720p (1280x720)
3456 FPS @ 1080p (1920x1080)
1664 FPS @ 3M (2048x1536)
970 FPS @ 5M (2591x1944)
690 FPS @ 4K (3840x2160)
Total FPS (H.265) 3840 FPS @ 720p (1280x720)
3840 FPS @ 1080p (1920x1080)
3072 FPS @ 3M (2048x1536)
1792 FPS @ 5M (2591x1944)
1140 FPS @ 4K (3840x2160)
Total FPS (MJPEG) 1260 FPS @ 720p (1280x720)
770 FPS @ 1080p (1920x1080)
560 FPS @ 3M (2048x1536)
400 FPS @ 5M (2591x1944)
Synology Drive
Recommended Number of Hosted Files 5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Recommended Number of Concurrent Sync Clients 2,000 (the number of connections that can be maintained when the recommended number of hosted files was reached)
Synology Office
Virtual Machine Manager
Recommended Virtual Machine Instances 32 (Learn more)
VPN Server
Maximum Connections 40
SpecsValue
