Qnap TS-h1090FU NVME (U.2) 1U 10bay AMD based SSD NAS
TS-h1090FU-7302P-256G (By Request)
TS-h1090FU-7302P-128G
TS-h1090FU-7232P-64G
CPU | AMD EPYC™ 7302P 16-core/32-thread processor, up to 3.3 GHz
or AMD EPYC™ 7232P/7252 8-core/16-thread processor, up to 3.2 GHz |
CPU architecture | 64-bit x86 |
encryption engine | (AES-NI) |
system memory | 256 GB RDIMM DDR4 ECC (8 x 32 GB) |
maximum memory | 1TB+ (12 x 128GB) |
memory slot | 12 x RDIMM DDR4 |
flash memory | 5 GB (dual-boot OS protection) |

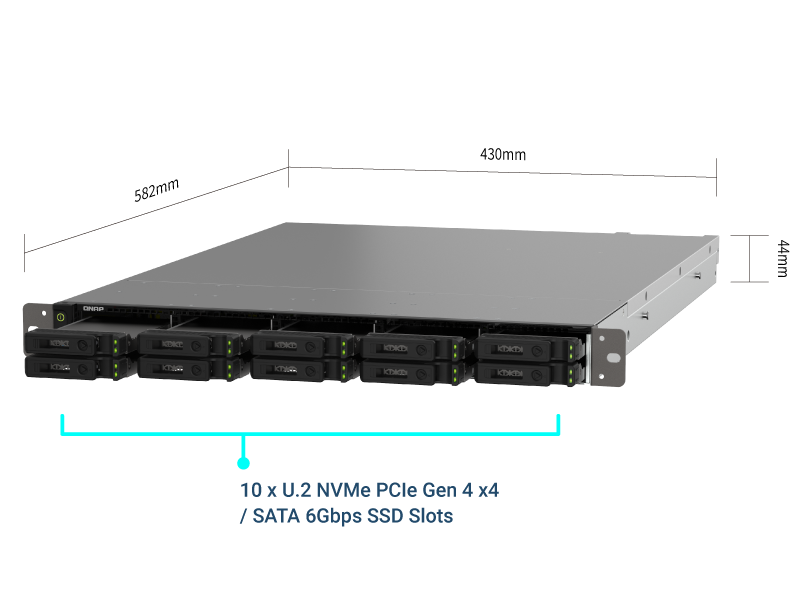

Number of hard disk slots | 10 x 2.5-inch U.2 PCIe NVMe/SATA 6Gbps
System shipments do not include solid state drives.
For SSD compatibility list, visit https://www.qnap.com/compatibility/ |
Supported hard disk types | 2.5-inch U.2 NVMe Gen 4 x4 solid state drives 2.5-inch SATA solid state drives |
Hot-plug support | |
SSD cache acceleration support | |
SR-IOV | |
2.5 Gigabit Ethernet port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |

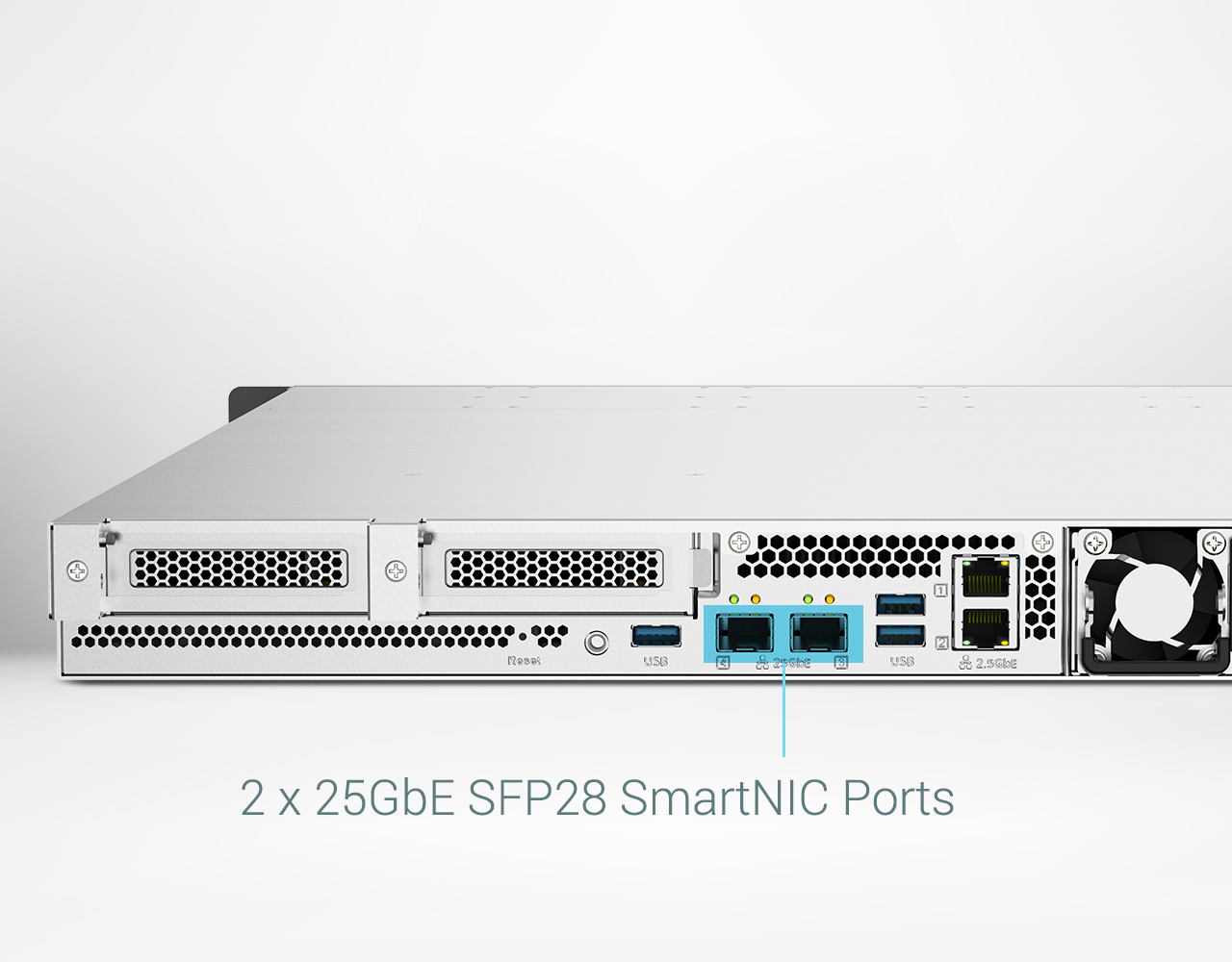

25 Gigabit Ethernet ports | 2 x 25GbE SFP28 SmartNIC ports |
Wake on LAN (WOL) |
Only 2.5GbE ports are supported
|
jumbo frame | |
PCIe expansion slot | 2 Slot 1: PCIe Gen4 x16 Slot 2: PCIe Gen4 x16 For low profile PCIe cards only.
|
USB 3.2 Gen 1 port | 3 |
Dimensions | rack mount |
LED indicator | Disk, Status, LAN, storage expansion port status |
button | power, system reset |
Dimensions (HxWxD) | 44 × 430 × 580 mm |
operating temperature | 0 – 40°C (32°F – 104°F) |
Storage temperature | -20 – 70°C (-4°F – 158°F) |
Relative humidity | 5-95% RH (non-condensing), wet bulb: 27˚C (80.6˚F) |
Power Supplier | 550W PSU (x2), AC 100-240V |
fan | 5 x 60mm, 12VDC |
system alert | buzzer |
Max.Number of Concurrent Connections (CIFS) – with Max.Memory | 10,000 |
